Modular Optical Imaging System

Discover the Modular Optical Imaging System (OiS200)

The Modular Optical Imaging System (OiS200) from LabeoTech is a cutting-edge platform designed to meet the diverse needs of researchers in the field of brain imaging. This versatile system supports a range of optical imaging techniques, including Widefield Intrinsic signal Optical Imaging, Fluorescence Imaging, and Speckle Imaging, making it an essential tool for modern neuroscience.

What is Optical Imaging?

Optical imaging is a technique that uses light interactions to measure brain activity. Compared to other imaging methods, optical imaging provides high-resolution images both temporally and spatially with minimal invasiveness, making it ideal for an assortment of applications. By leveraging advanced optical imaging techniques, researchers can gain deeper insights into biological processes.

Advantages of Optical Imaging

High-Resolution Images

Optical imaging provides higher resolution images at a faster frame rate when compared to fMRI.

Non-Invasive Techniques

Optical imaging captures detailed images without invasive procedures, reducing discomfort. Also, this technique can be used for both acute and chronic experiments.

Cost-Effectiveness and Speed

Optical imaging is usually faster and cheaper than other methods, as fMRI or ultrasounds. This allows for quicker data collection and lowers overall costs.

Case Studies from Our Blog Featuring This Product

Exploring Endogenous Signals in Mouse Brain Imaging

Exploring Endogenous Signals in Mouse Brain Imaging

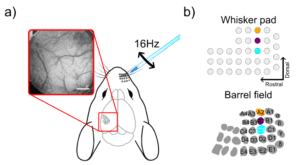

Autofluorescence imaging (AFI) is another, perhaps less commonly known, technique used to measure neuronal activity. It relies on the detection of changes in fluorescence from endogenous mitochondrial proteins inside neurons, named flavoproteins. During aerobic energy metabolism, these flavoproteins are oxidized which is translated by an increase in the molecule’s autofluorescence. Therefore, this signal can be used to measure neuronal activity given that an increase in neuronal responses is directly linked to an increase in its metabolic rate. In this blog, we explore the mouse primary somatosensory cortex function using both intrinsic and autofluorescence imaging techniques.

Read More »
From Scents to Signals: exploring the mouse olfactory bulb

From Scents to Signals: exploring the mouse olfactory bulb

When we think about how we use our senses to interact with the surrounding environment, the sense of smell might not be the first to come to mind. However, evidence indicates that olfaction plays a crucial role in our species, influencing several aspects of our social interactions, such as mate choice and mother-infant bonding (Boesveldt and Parma 2021).
One study estimated that humans can discriminate more than a trillion different odors (Bushdid et al. 2014). This remarkable capability is due to the presence of a large number of olfactory sensory neurons in the back of our nasal cavity. Each neuron expresses a single type of olfactory receptor protein, which has a distinct affinity for specific odorant molecules.

Read More »
Cortical Dynamics in Mouse Behavior using Widefield Calcium Imaging - Part One

Cortical Dynamics in Mouse Behavior using Widefield Calcium Imaging – Part One

The mouse cortex is a complex structure segmented into distinct regions, each specialized in processing sensory information, motor planning, execution etc. These functional modules are highly interconnected and work together to allow the animal to interact with its environment and drive behavior. Different behavioral contexts can significantly influence how these cortical regions process information and interact with each other. For instance, during locomotion, areas linked to motor control are activated to fine-tune limb positions due to obstacles in the environment, while sensory areas such as the visual cortex prioritize processing features that are more salient during locomotion (Schneider 2020). Understanding the dynamic interplay between cortical areas and behavior is crucial to comprehending how the brain processes sensory information and drives behavior.

Read More »
Mapping of visual areas in mice

Retinotopic mapping

The visual system of mammals is organized in a way that each section of the visual field is processed by a corresponding region of the brain. This is known as a visuotopic or retinotopic (referring to the retina) organization of the visual system. The retinotopic mapping of visual cortex was previously described in several mammalian species – including primates, carnivores and rodents -using different anatomical or functional approaches. Each approach comes with advantages and drawbacks.

Read More »

Advanced Optical Imaging Techniques

The OiS200 excels in fluorescence imaging techniques that are highly effective for observing brain activity in vivo. Whether working with awake or anesthetized mice, researchers can utilize intrinsic optical imaging and fluorescence imaging to capture detailed views of neural dynamics. The system’s speckle imaging capability further enhances its utility by allowing precise quantification of cerebral blood flow across surface vessels. The fluorescence imaging system offers multimodal acquisition in a single device.

Optogenetic Stimulation for Enhanced Imaging

To push the boundaries of optical imaging, the OiS200 can be completed  by an optional integrated optogenetic stimulation module. Researchers can choose between two configurations: a single point that can be moved across the brain or a full 8.5 mm x 8.5 mm spatially modulated pattern. Multiple wavelengths are available to stimulate different opsins, including ChR2 and Chrimson, ensuring compatibility with a wide range of experimental setups.

User-Friendly and Configurable Imaging Platform

Designed with flexibility, the OiS200 is portable and easy to set up, making it ideal for various research environments. The optical imaging system offers multiple camera options and illumination solutions, all controlled via a user-friendly software interface. This ensures that researchers can tailor the system to their specific needs without compromising ease of use.

Customizable Setup and High-Quality Construction

The OiS200 allows users to adjust imaging angles up to ±30º for better optical imaging. You can change the height of the system. You can also set up the lights in different ways for your experiments. Strong steel makes the imaging plate. This allows for magnetic accessories to be used for a secure and flexible setup.

Explore New Frontiers with Our Microendoscope

LabeoTech developed a new microendoscope add-on working with the OiS200 platform.

This device can observe deep brain activity in awake, freely moving animals. This new tool improves optical imaging. It lets researchers study brain function in ways that were not possible before.

All publications with our imaging system can be viewed here.

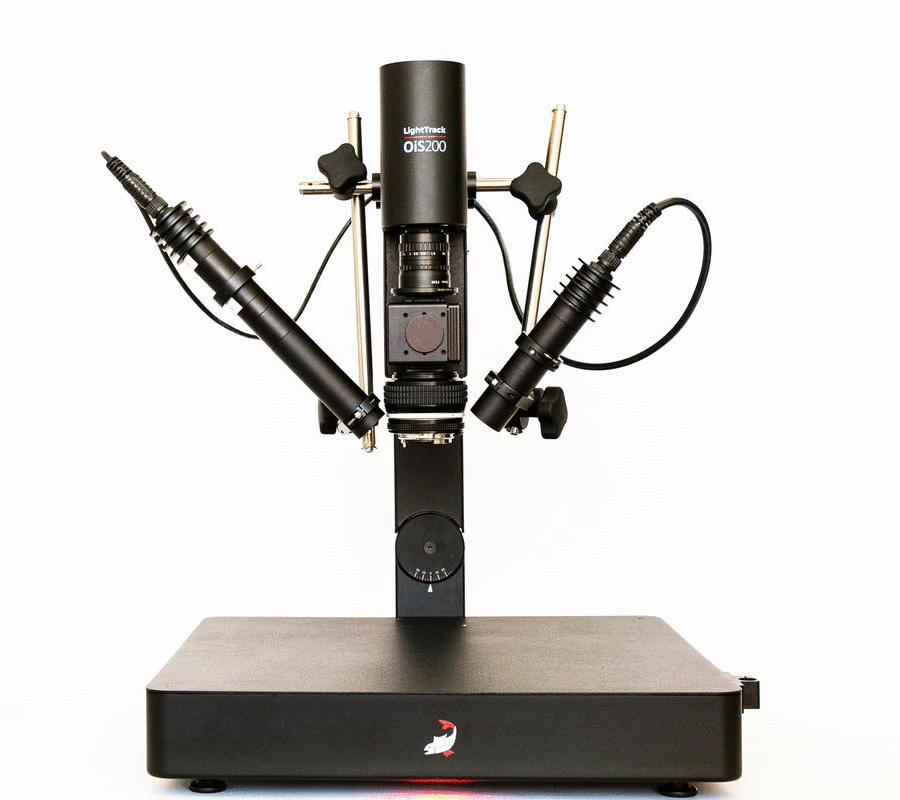

Vertical Positioning

OiS200 system for in vivo optical imaging in rodent for neuroscience research tilt

Inclination

Multiple cameras

OiS200 system for in vivo optical imaging in rodent for neuroscience research

Behavioral Monitoring Camera

Unlock the full potential of your research with our add-on behavioral monitoring camera designed specifically for monitoring mouse behavior.

Key Features:

  • High-Speed Recording: Capture rapid movements and subtle behaviors at up to 900 fps (256 X 128).
  • Infrared Illumination: Monitor your subjects in dark conditions without disturbing their natural behavior and the imaging system.
  • Synchronization with Imaging System: Seamlessly integrated to the acquisition software for precise synchronization (0.1 ms) with the main imaging camera, the analog inputs and the output stimulations.
  • Adjustable Zoom: Focus on specific areas or behaviors with ease, such as the pupil or the paws, thanks to the adjustable zoom feature.

Whether you’re conducting behavioral studies, neurological research, or any other scientific investigation, our camera provides the reliability and performance you need to achieve your research goals.

Here are the potential applications for using our modular optical imaging system:

  • Cerebral blood flow, neurovascular coupling & functional connectivity studies
  • Neurological disorders
  • Pharmacology
  • Optogenetics
  • Voltage sensitive dies (VSD)
  • Electrophysiology (compatible with Open Ephys)
  • Epilepsy
  • Alzheimer’s disease
  • Aging
  • Hypertension
  • Ischemia
  • Strokes
  • Awake head-fixed mice

Accessories for the OiS200 can be purchased from our online store

Accessories for the OiS200 can be purchased from our online store

Specifications
Dimensions
1.5′ (width) X 2′ (depth) X 2′ (height)
Frame Rate
50 fps at 1024 X 1024, up to 1000 fps
Exposure Time
>0.1 ms
Output Stimulation
Digital (8 bits) and Analog (2 channels)
Inputs
8 inputs, 10 kSamples/second
