LabeoTech

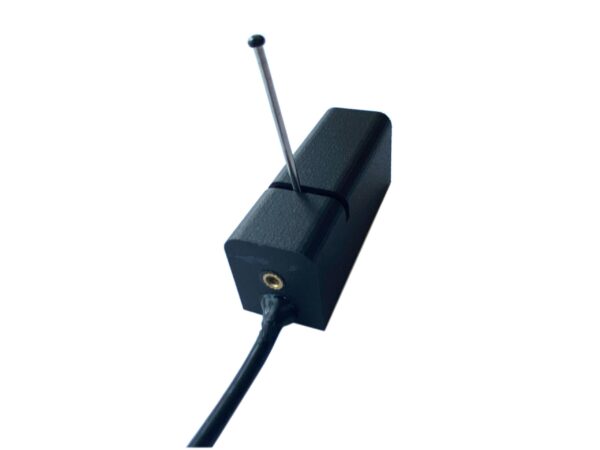

Behavioral Lever

USD$ 2,000.00

The behavioral lever is intended for fine motor task. See the complete description below.

Availability: In stock

Categories: ,

The behavioral lever, with force perturbation, measures the lever position and can apply a programmable force that will move the lever out of the reward zone. It is meant to be used in conjuncture with an automatic home cage system that already delivers water trough a water spout for reward. Reward or punition can be controlled trough a 5V TTL interface or through a SERIAL interface. The system can also be used in a stand-alone configuration with a stereotaxic head restrainer and a water delivery pump at extra cost. The lever can also be used with our automatic home cage system.





file icon

Features

  • Matlab Scripts povided for easy dataAnalysis
  • Communication to other device capabilities
  • Configurable reward zone position
  • Sensorial feedback for animal (LED turns on when in the reward position)
  • Auto Calibration mechanism
  • Open-Source firmware and software

magnet icon

Magnetic

System can be positioned to any ferrous surface for easier handling and placement.

gears icon

Specifications

  • Measures lever position at 20 Hz (0.15 deg.)
  • Clockwise and counterclockwise
  • Interval between perturbation (1s -255s)
  • Random probability (0 to 10)
  • Configurable speed (1-100%)
  • Configurable amplitude (+/- 40 deg.)

Behavioral Lever GUI and Data Analysis

 lever add-on GUIdata visualization in Matlab
